How to Set Up Pi-hole in a Proxmox LXC Container with OPNsense

I recently started building a virtualized home network using my GMKtec N100 Mini PC, with Proxmox VE as the hypervisor. Inside this environment, I deployed OPNsense as a virtual router and Pi-hole as a DNS-based ad blocker.

In this post, I’ll walk through how I installed Pi-hole inside a Proxmox LXC container, assigned it a static internal IP, and configured it to work with OPNsense as the DNS resolver — all inside a self-contained virtual network.

Overview of the Virtual Setup

Host:

• GMKtec N100 Mini PC
• Proxmox VE (with virtual bridge networking)

Virtual Machines & Containers:

• OPNsense VM — virtual firewall/router (192.168.10.1)
• Pi-hole LXC container — DNS server and ad blocker (192.168.10.2)
• Virtual LAN: 192.168.10.0/24 (used only internally within Proxmox)

Step 1: Creating the LXC Container for Pi-hole

In the Proxmox web UI:

1. Download a Debian template (e.g., debian-12-standard) under local > CT Templates.
2. Click Create CT and configure:
   • Hostname: pihole
   • Template: Debian 12
   • Storage: 4GB is sufficient
   • CPU & RAM: 1 vCPU, 512MB RAM
   • Network:
     • Static IP: 192.168.10.2 (or any free IP in the internal subnet)
     • Gateway: 192.168.10.1 (OPNsense)
   • Features: Enable Nesting

Once created, start the container and access its console via Proxmox.

Step 2: Installing Pi-hole Inside the Container

Inside the container’s shell:

apt update && apt upgrade -y
apt install curl sudo -y
curl -sSL https://install.pi-hole.net | bash

During the installer prompts:

• Interface: Select eth0
• Upstream DNS: I chose Cloudflare (1.1.1.1)
• Blocklists: Keep defaults; you can add more later
• Web admin interface: Yes
• Query logging: Yes
• Privacy level: I kept the default for now

Once completed, Pi-hole runs as a DNS server on 192.168.10.2.

To access the admin UI from another VM or container in the virtual network:

http://192.168.10.2/admin

You can set a password with:

pihole -a -p

Step 3: Configuring OPNsense to Use Pi-hole for DNS

My OPNsense VM is the default gateway (192.168.10.1) for all internal devices in this virtual network. To route DNS requests through Pi-hole:

In the OPNsense Web UI:

1. Services > DHCPv4 > LAN
   • Set DNS servers to 192.168.10.2
   • Ensure the option “Ignore the DNS servers provided by the DHCP server” is unchecked
   • This makes Pi-hole the DNS server for all devices using DHCP inside the virtual LAN
2. System > Settings > General
   • Set DNS servers manually (e.g., 1.1.1.1, 8.8.8.8) for OPNsense itself
   • Uncheck “Allow DNS server list to be overridden by DHCP/PPP on WAN”
3. Services > Unbound DNS > General
   • If Unbound is enabled, you can:
     • Either disable it completely and delegate DNS to Pi-hole
     • Or forward queries to Pi-hole (less common)
   • In my case, I disabled Unbound so that clients rely solely on Pi-hole

Step 4: Testing the Setup

Inside a virtual client (like another VM or LXC container in the same network):

1. Check if the system received Pi-hole’s IP as DNS via DHCP: cat /etc/resolv.conf Should show: nginx nameserver 192.168.10.2
2. Use dig or nslookup to verify DNS resolution: dig google.com
3. Visit a few ad-heavy websites in the browser.
   • You should see fewer (or no) ads

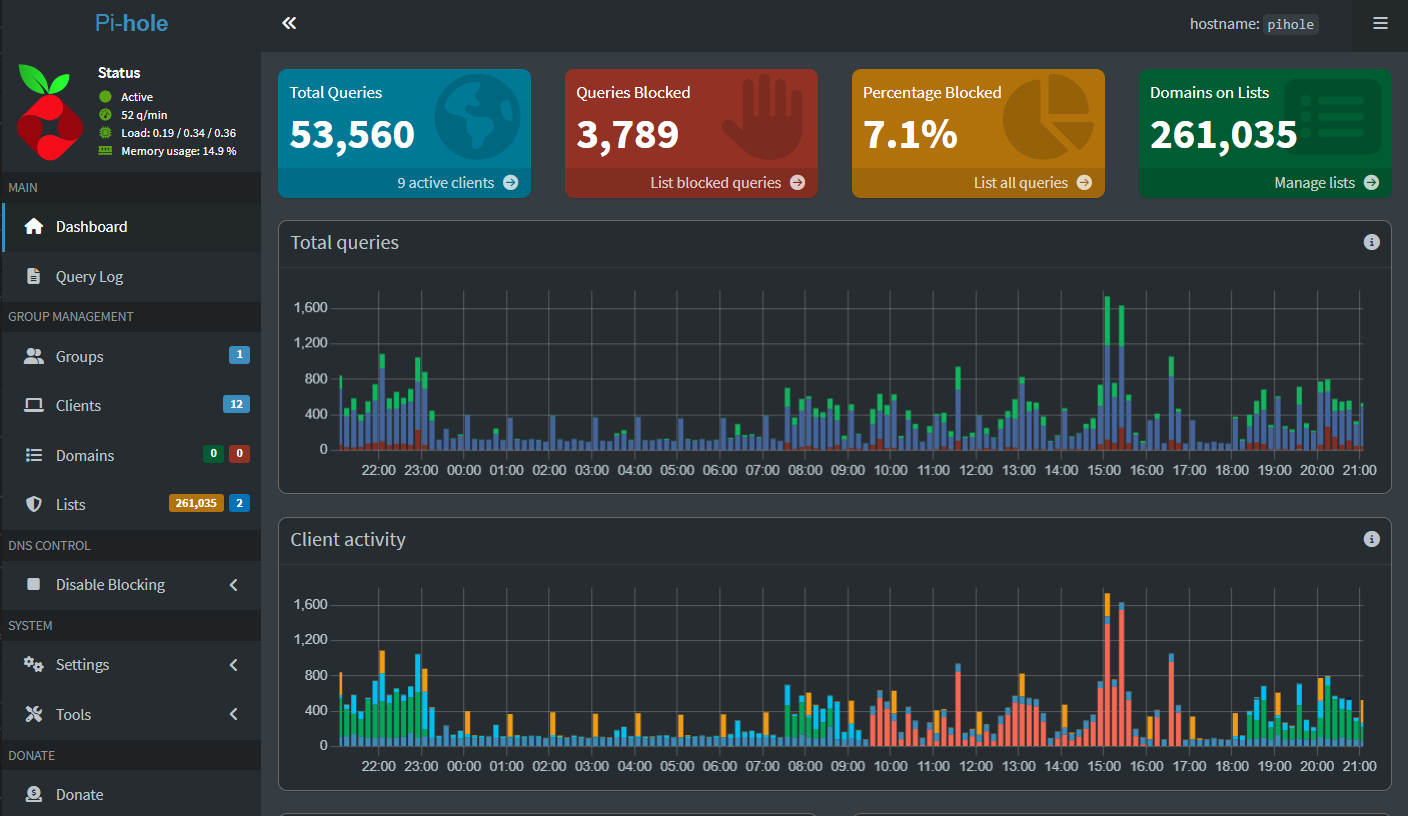

   • The Pi-hole dashboard (http://192.168.10.2/admin) should show DNS queries

Optional: Enable Conditional Forwarding in Pi-hole

This allows Pi-hole to resolve local hostnames from OPNsense:

1. Go to the Pi-hole admin panel
2. Settings > DNS
3. Scroll down to Conditional Forwarding and set:
   • Local network: 192.168.10.0/24
   • Router IP: 192.168.10.1
   • Local domain name: This is usually local or whatever you set in OPNsense DHCP

This will help display hostnames instead of just IP addresses in Pi-hole logs.

Current Status

As of now:

• Pi-hole is fully functional and intercepting DNS queries inside my virtual environment
• All internal devices get DNS from Pi-hole via OPNsense’s DHCP
• Logs, blocking, and filtering work as expected

However:

• My physical home devices are not yet using Pi-hole
• The virtual LAN is not bridged to my home LAN or router

Conclusion

Setting up Pi-hole inside a Proxmox environment alongside OPNsense was a clean and modular approach. It allowed me to test and validate everything in a sandboxed environment before exposing it to the broader network.

This setup gave me:

• Full control over DNS
• Network-wide ad blocking (within the virtual LAN)
• Insight into DNS requests from each device

The next step will be bridging or routing traffic from my physical home network into this environment — either by placing Proxmox between the modem and router or bridging the virtual LAN to my LAN.

Until then, this setup provides a safe and functional internal DNS firewall.
